Learning goals
- I can use contour lines, scale, and direction to describe a landscape.
- I can calculate a gradient and explain what it says about slope.
Readings for this unit
Before this unit
Use a scale and interpret differences between elevations.
Plan three teaching sessions: core explanation and Parts 1–2; Parts 3–4 with diagrams and reasoning checks; then the whole-unit application, worked examples, independent practice, and exit check. Read one part at a time, explain it without notes, and revisit any gap. Allow about 40–50 minutes per session; adjust after checking understanding. Trace and explain the labeled figures in each part. In the third session, complete the illustrated case and changed independent application; retain a corrected explanation rather than only an answer.
Start with something to explain
How can two routes with equal total rise feel very different?
Illustrative evidence case. A 2 km route rises 80 m overall; one half-kilometre segment rises 40 m while another rises only 10 m.
Notice and wonder
Record two observations using the stated quantities or relationships. Keep observations separate from possible causes. Write one question that a new measurement could help answer.
How can two routes with equal total rise feel very different?
Your first model
Sketch the route profile and label horizontal distance separately from elevation.
Build the language from the idea
- contour
- A line connecting locations of equal elevation.
- contour interval
- The elevation difference between successive contour values.
- gradient
- Change in elevation divided by horizontal distance.

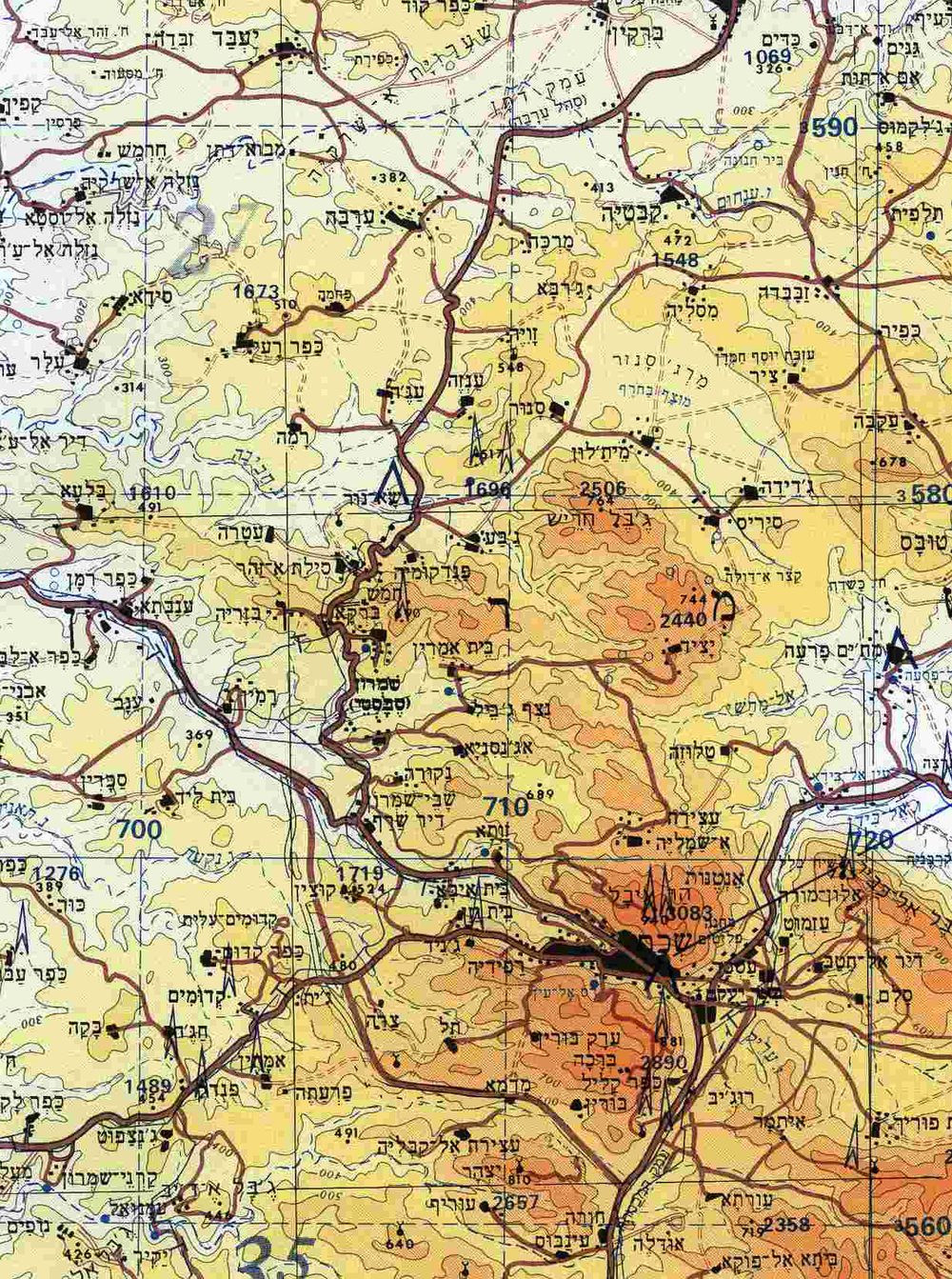

A topographic map uses contour lines to connect points at equal elevation. The contour interval is the elevation difference between neighboring contour values. Closely spaced contours indicate a steeper slope; widely spaced contours indicate a gentler slope at the same map scale. Closed contours commonly represent hills, unless special markings show a depression.
Use the map scale to convert measured map distance to horizontal ground distance. Gradient = elevation change ÷ horizontal distance. Include both units, such as meters per kilometer. A gradient is an average over the chosen interval, so it can hide a short steep section.
Read the north arrow and legend rather than assuming the top of every diagram points north. Where contours cross a stream valley they generally form a V pointing upstream, toward higher elevation. Water flows downhill, but infiltration, vegetation, and the shape of the land affect the route and speed of runoff. A contour map alone does not establish flood safety.
A contour line joins equal elevations, and the contour interval is the elevation change between adjacent lines. Closely spaced contours usually indicate a steeper slope; widely spaced contours indicate a gentler one. Read the map legend before inferring the interval.
Gradient is elevation change divided by horizontal distance. Keep both measurements in compatible units or explicitly report units such as meters per kilometer. A map's straight-line distance is not necessarily the distance a winding stream or trail travels.
Contour lines generally make a V pointing upstream where they cross a valley stream. Water tends to flow downhill under gravity, but a topographic map does not show every underground path or temporary obstruction. Use the map to predict and compare with field evidence.
Build your understanding
Plan three teaching sessions: core explanation and Parts 1–2; Parts 3–4 with diagrams and reasoning checks; then the whole-unit application, worked examples, independent practice, and exit check. Read one part at a time, explain it without notes, and revisit any gap. Allow about 40–50 minutes per session; adjust after checking understanding.
Part 1 · Read a contour as a set of equal heights
A contour interval is the elevation difference between neighboring contour lines. Start from a labeled line and count intervals, not the total number of lines visible. The four contours represent 100, 120, 140 and 160 m. If no 180 m contour is present within the closed 160 m contour, the summit is constrained to below the next contour elevation under this simplified map. Horizontal spacing reflects how quickly height changes over ground distance; these lines do not directly measure the length of a sloping hiking route.
Read the visual model
Start at 100 m and increase by 20 m at each inward contour. An unlabeled highest point is not automatically exactly 160 m.
What elevation range is supported for the summit, rather than an invented exact elevation?
Visual reasoning — after your attempt
It is above 160 m and below 180 m in the supplied ideal contour map. An exact summit height requires another measurement.
Every point on one contour has the same elevation. Neighboring contours differ by the stated interval; a label may appear only on selected index contours. Identify units and interval before counting. A contour is a representation of terrain, not a physical painted line on the ground.
With labeled lines at 100 and 200 m and five equal intervals between them, the interval is 20 m. Count spaces, not the number of drawn lines; check that intermediate labels agree.
Pause and explain
Why does counting lines instead of intervals produce an incorrect elevation change?
Check your reasoning after answering
The change occurs between adjacent lines; the number of spaces determines the number of elevation steps.
Part 2 · Translate map distance into gradient
Gradient is elevation change divided by horizontal ground distance over the selected interval. From the first to last profile point, the rise is 180−100 = 80 m over 2 km, giving 40 m/km. Between 0.5 and 1.0 km, the rise is 40 m in only 0.5 km, giving 80 m/km. The average conceals that local difficulty. Convert map length with the stated scale before calculating, and keep vertical/horizontal units visible. A profile is a side-view height record along one line, not a three-dimensional picture of the entire landscape.
Read the visual model
Compare the slope of each segment and calculate using its endpoints. A visually steeper line means more rise per distance only when the graph scales are fixed.
Find the gradient from 1.0 to 1.5 km and compare it with the whole route.
Visual reasoning — after your attempt
The rise is 160−150 = 10 m over 0.5 km, or 20 m/km. This section has half the route’s 40 m/km average gradient.
Gradient compares change in elevation with horizontal ground distance. Use scale to convert the distance first, then divide and retain units. A measured map path is not automatically the sloping length of a trail; gradients from two maps are comparable only when the units and measurement definitions match.
A 60 m rise across 0.5 km gives 120 m/km. Close contours indicate a steeper gradient only when compared at the same contour interval and map scale.
Pause and explain
Two maps have different intervals. Can you compare steepness from spacing alone?
Check your reasoning after answering
No. Convert elevation change and horizontal distance using each map’s interval and scale.
Part 3 · Infer drainage and distinguish a depression
A hachure is a short tick on a depression contour, pointing toward lower ground. Compare it with the neighboring elevation labels before deciding which direction is downhill. In the left panel elevations rise from 150 to 170 m inward; in the right panel they fall from 150 to 130 m inward. Streams generally run toward lower elevation. Where contours cross a valley, the contour V usually points upstream: the stream runs down the valley in the opposite direction to that V. Use the map’s key to check conventions.
Read the visual model
The nested shape is similar in both panels. The tick marks and different height sequence change the interpretation.
Which central region is lower than its surrounding outer contour, and what two clues support that answer?
Visual reasoning — after your attempt
The right panel: its inner contour is 130 m compared with 150 m outside, and its hachures point inward toward lower ground.
Where contours cross a stream valley, their V shape generally points upstream toward higher elevation. Stream flow runs downhill along the valley. Closed loops usually enclose higher terrain, but hachured depression contours indicate inward-decreasing elevation; symbols and surrounding heights decide the interpretation.
If a stream crosses 180, 160 and 140 m contours in that order, its downstream direction is toward 140 m. Verify the elevations rather than rely on which way the page is facing.
Pause and explain
What evidence makes a closed loop a depression instead of a hill?
Check your reasoning after answering
Depression markings and inward-decreasing elevations, read with the map key and neighboring terrain.
Part 4 · Construct a profile and evaluate a route
To construct a profile, mark each intersection of the selected map line with a contour. Transfer its horizontal position and elevation to graph axes. The plotted 160 m crossing need not be the summit: the terrain can rise farther between crossings without reaching a 180 m contour. Interpolation estimates values within measured positions; it should respect the contour constraints and remain identified as an estimate. A route recommendation should discuss local slopes and conditions rather than treating a smooth line as a guaranteed walkable surface.
Read the visual model
Read the dots as known contour intersections. The connecting line is an illustrative interpolation, not a set of extra surveyed measurements.
What additional evidence would locate the exact high point and test whether the route is safe to walk?
Visual reasoning — after your attempt
A denser elevation survey or an appropriately resolved map can locate the high point; actual trail, surface, access and hazard information is needed for a walking decision. The supplied crossings alone are insufficient.
A topographic profile shows elevation against distance along a stated line. Mark each contour crossing on the horizontal axis, plot its elevation, and connect a plausible surface. Between crossings, elevation is constrained but not known exactly; avoid drawing unsupported cliffs or exact summit heights.
Two routes can share endpoints but differ in steepest segment and total length. A gentler average does not guarantee every segment is gentle; examine the profile and local contour spacing.
Pause and explain
Why can an average gradient conceal a difficult short section?
Check your reasoning after answering
A steep segment and a flat segment can average to a moderate gradient; local changes still matter.
Apply the whole unit · Choosing a route across a hill
Illustrative map measurements: Route A rises 120 m over 1.5 km; Route B rises 120 m over 3.0 km, but its first 0.4 km rises 80 m.
Your task
Calculate both average gradients and Route B’s first-segment gradient. Recommend what a route planner must check beyond the average and sketch a labeled profile consistent with the measurements.
What your response should show
- Use the supplied evidence accurately and label units or locations.
- Explain a physical mechanism or evidence-to-claim relationship.
- Show calculations or a clearly labeled model when the task calls for one.
- Identify a meaningful assumption, uncertainty, or competing explanation.
Response guidance — after your attempt
A = 80 m/km; B = 40 m/km overall; B’s first segment = 200 m/km. The lower average conceals a steeper local segment. Check terrain, route condition and map resolution; several profile shapes can fit the limited data.
Scientific references and adapted source material
Parent / teacher teaching notes
Have the learner count intervals using a drawn map, convert scale, and describe downstream direction. Accept different consistent profiles and ask where elevations remain uncertain. Ask the learner to explain each visual label and causal step before calculating. Preserve a first model, attempt the changed independent case, then use feedback to revise. Diagrams state whether values are illustrative or observed. Selected OpenSciEd excerpts are middle-school source material used for supported foundations; the independent high-school explanations and supplements are not the complete OpenSciEd teacher editions or an endorsement.
The key idea
Contour spacing shows relative steepness; gradient measures average elevation change per horizontal distance.
Worked examples
Example 1
- Elevation change = 200 − 120 = 80 m.
- Gradient = 80 ÷ 2.
Example 2 · Worked application
- Elevation change=180−100=80 m.
- Gradient=80/400=0.20 m/m.
Use horizontal ground distance and actual elevations, not contour-line count alone.
Example 3
- Elevation change=300−120=180 m.
- Gradient=180 m/3 km=60 m/km.
Example 4 · Find and fix the mistake
- Test the claim against the stated conditions: Use horizontal ground distance and actual elevations, not contour-line count alone.
- For the same contour interval, closer lines mean greater elevation change over less horizontal distance, hence a steeper slope.
Use horizontal ground distance and actual elevations, not contour-line count alone.
Example 5 · Reason from the visual evidence
- The nested shape is similar in both panels. The tick marks and different height sequence change the interpretation.
- The right panel: its inner contour is 130 m compared with 150 m outside, and its hachures point inward toward lower ground.
These paired original maps isolate the difference between hills and depressions at the same 20 m interval. Hachure direction and labeled elevation together support the interpretation. The diagrams omit streams; the valley-V convention is explained in the adjoining prose rather than inferred from these circular contours.
Avoid these mistakes
- Do not count contour lines as if their spacing were a distance scale.
Check your understanding
Elevation rises from 120 m to 300 m over a horizontal distance of 3 km. Find gradient.
Discuss the answer
60 meters of elevation change per kilometer horizontally.
Why does a topographic map not by itself show the distance along a winding trail?
Discuss the answer
The map represents plan-view ground positions and elevations. A winding trail’s horizontal path and changing slopes require the marked route and profile; contour labels alone are not the full sloping walking distance.
Return to the phenomenon
Return to the initial case. How can two routes with equal total rise feel very different? Revise your drawing or explanation using two named ideas and one stated limitation.
Compare explanations after your attempt
The whole-route gradient is 40 m/km, but the selected segments are 80 and 20 m/km. Local contour spacing and profile slopes reveal differences hidden by the average.
What should we investigate next?
Which comparison would test a remaining uncertainty? State what you would change, keep comparable and measure.
Investigate, explain and revise
Complete the tasks after studying the visual parts. Keep the first model and explain a revision before consulting the guidance.
Activity 1 · Explain the opening case
Use this unit’s opening record, Parts 1–4 and your notebook model. No external equipment or text is required for this supplied-data route.
Your task
Return to the initial case. How can two routes with equal total rise feel very different? Revise your drawing or explanation using two named ideas and one stated limitation.
Success criteria
- Use two stated observations or conditions.
- Connect the mechanism to a labeled diagram or calculation.
- Identify what your original model missed.
- State a useful further test and a limitation.
Hint
Name the quantities and interactions before assigning a cause.
Response guidance — discuss after your attempt
The whole-route gradient is 40 m/km, but the selected segments are 80 and 20 m/km. Local contour spacing and profile slopes reveal differences hidden by the average.
Activity 2 · Transfer to a changed case
Use the figures, captions and vocabulary in this unit; cover the worked answer.
Your task
A map scale is 1 cm = 0.4 km. Two points 3 cm apart along a stated map line rise from 220 to 280 m. Calculate average gradient and explain why it does not establish every local slope.
Success criteria
- Use the stated measurements or conditions, with correct units.
- Connect the result to the physical mechanism or evidence relationship.
- Identify the assumption, model limit or further evidence requested.
Hint
Separate measured values, calculated results and model assumptions.
Response guidance — discuss after your attempt
Ground distance is 1.2 km and rise is 60 m, so average gradient is 50 m/km. Local segments can be steeper or flatter; additional contour crossings or survey points are needed.
Words to know
- contour
- A line connecting locations of equal elevation.
- contour interval
- The elevation difference between successive contour values.
- gradient
- Change in elevation divided by horizontal distance.
In the real world
Exit check
What additional evidence would you want before judging flood risk from a contour map?
Check your explanation after answering
Rainfall, river discharge, drainage capacity, soil infiltration, land cover, and flood history; elevation alone is insufficient.
Explain your reasoning without notes. If a key idea is missing, revisit the lesson and try again.
